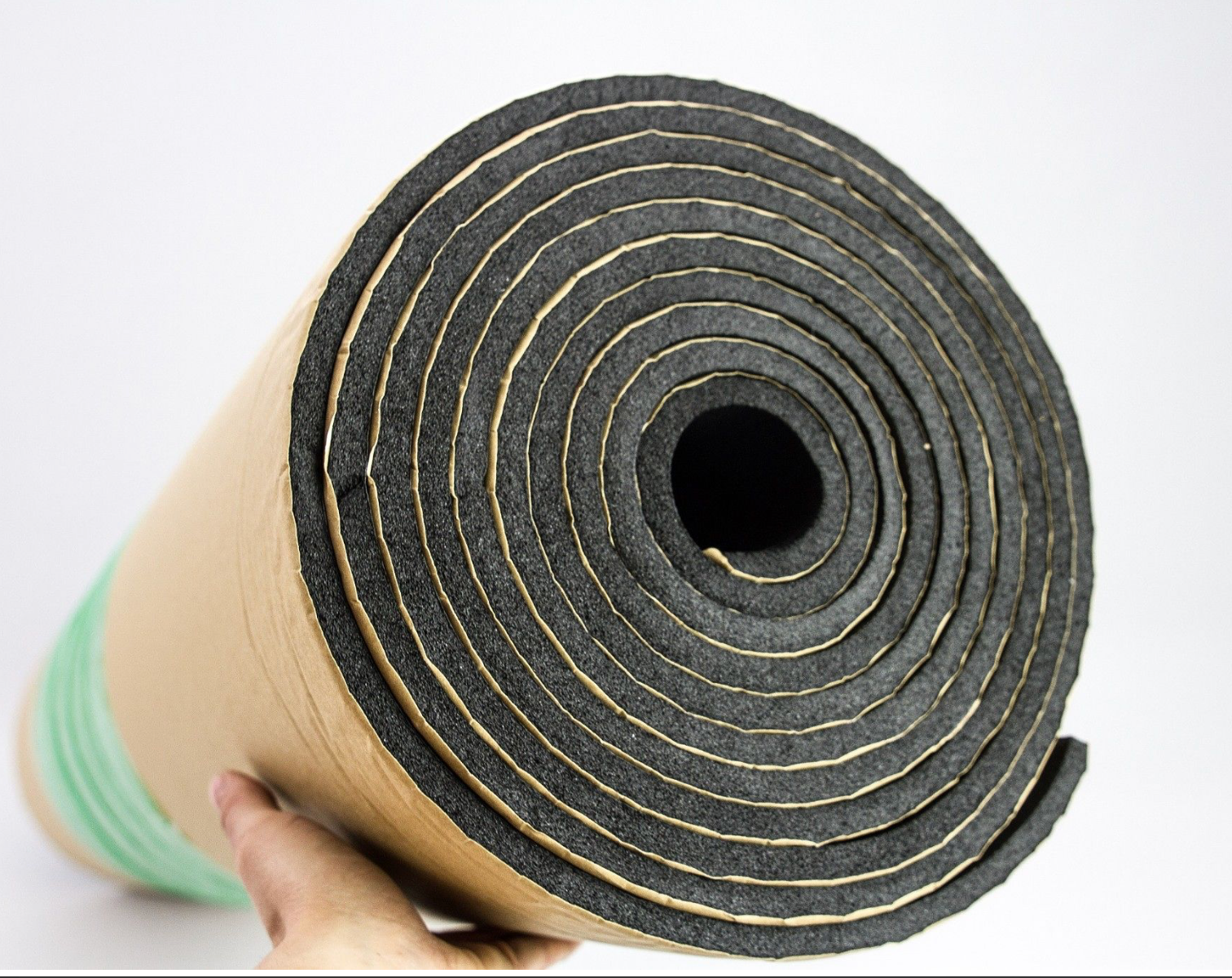

8mm Van Insulation Adhesive Closed Cell Foam Liner
Description:
This easy to install 8-10mm closed cell foam is ideal for roofs, doors, wheel arches, boot and parcel shelf applications.
Once fitted this product will improve the ride quality in your vehicle by reducing engine noise, tyre whine, road noise, wind noise and will significantly improve the overall vehicle refinement and sound quality.
As well as improve the vehicle acoustics this high performance closed cell foam will ensure your vehicle stays cooler in the summer and warmer in the winter.
Key Points:
-
Premium Quality Material: Adhesive-backed black 10mm closed cell foam insulation designed for long-lasting performance.
-
Superior Noise and Thermal Insulation: Effectively reduces noise and provides excellent thermal regulation.
-
Trusted by Professionals: Used by luxury vehicle manufacturers for its reliability and high performance.
-
Seals Against Water and Air: Provides exceptional protection against water and air ingress, ensuring durability.
-
Highly Compressible: Closed cell foam formulation offers flexibility while maintaining effectiveness.
-
Simple Installation: Easy "cut, peel, and stick" application process for quick and hassle-free fitting.
-
Water Resistant: Designed to withstand moisture, making it suitable for various conditions.
-
Flame Retardant: Meets safety standards for fire resistance, offering peace of mind.
Instructions - How to use VLiner Closed Cell Foam
Product Specifications:
- Size: from 1m to 10m
- Area: as selected
- Nominal Thickness: 8-10mm
- Weight: 430gsm approximately
- Temperature Stability: -20°C to +100°C
- R-Value: ≈ 0.286 (m²·K/W)
- U-Value: ≈ 3.50 (W/m²·K)
- Thermal Conductivity: ≈ 0.035 (W/m·K)
- Sound Deadening: ≈ 18–20 dB
Typical Temperature Stability: -20°C to + 100°C

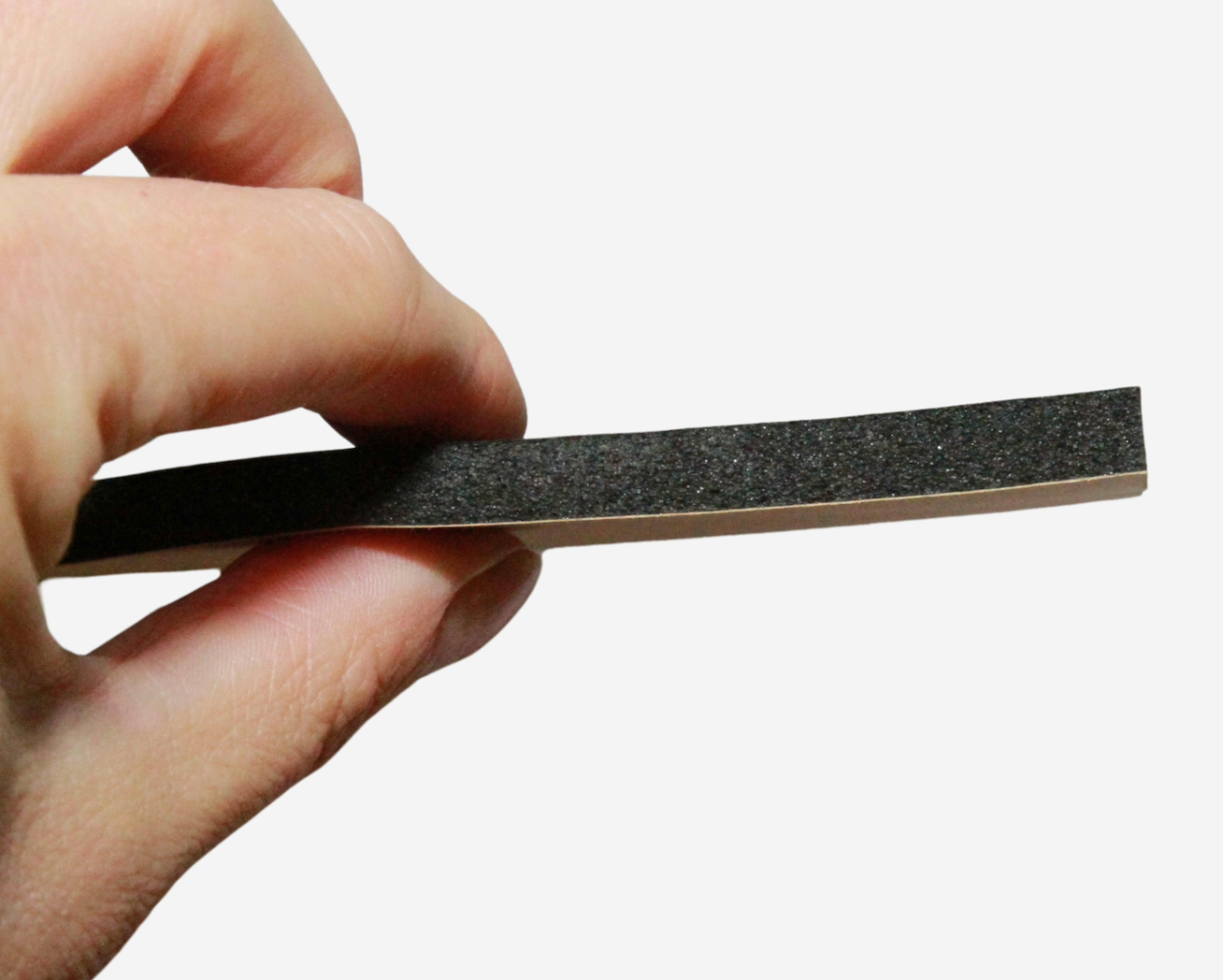

Note on Foam Thickness
Due to the natural structure of closed cell foam, the material can vary slightly in thickness along the length of the roll. This is completely normal for this type of insulation.
Our 8-10 mm foam is manufactured using a heat-expansion process, which creates millions of tiny sealed air cells inside the material. During production, rolling, and compression for transport, some areas may compact slightly more than others. Because of this, you may measure sections as close as 8mm and other areas as much as 10mm.
Fixing Methods:
Adhesive (Included)
