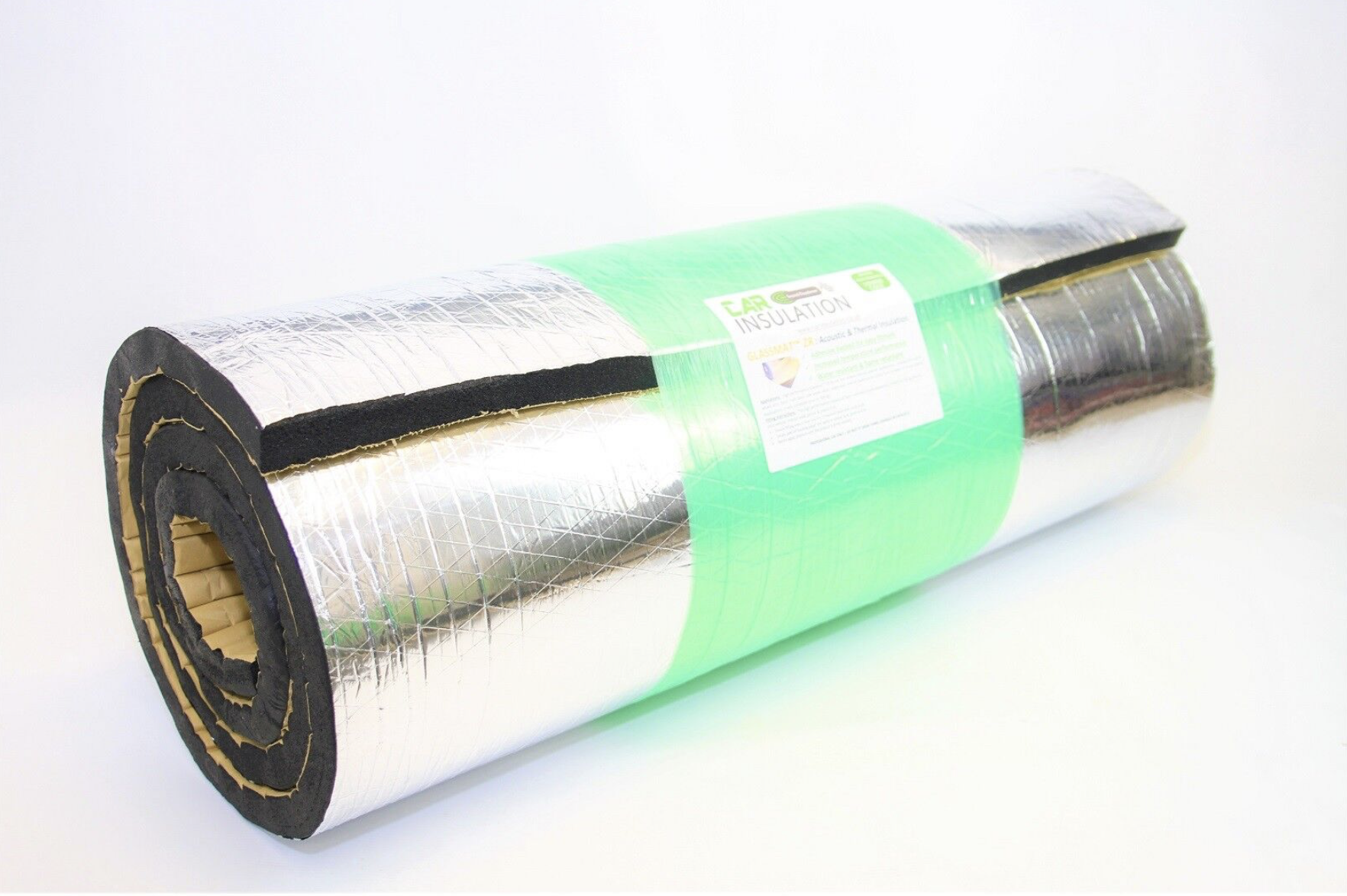

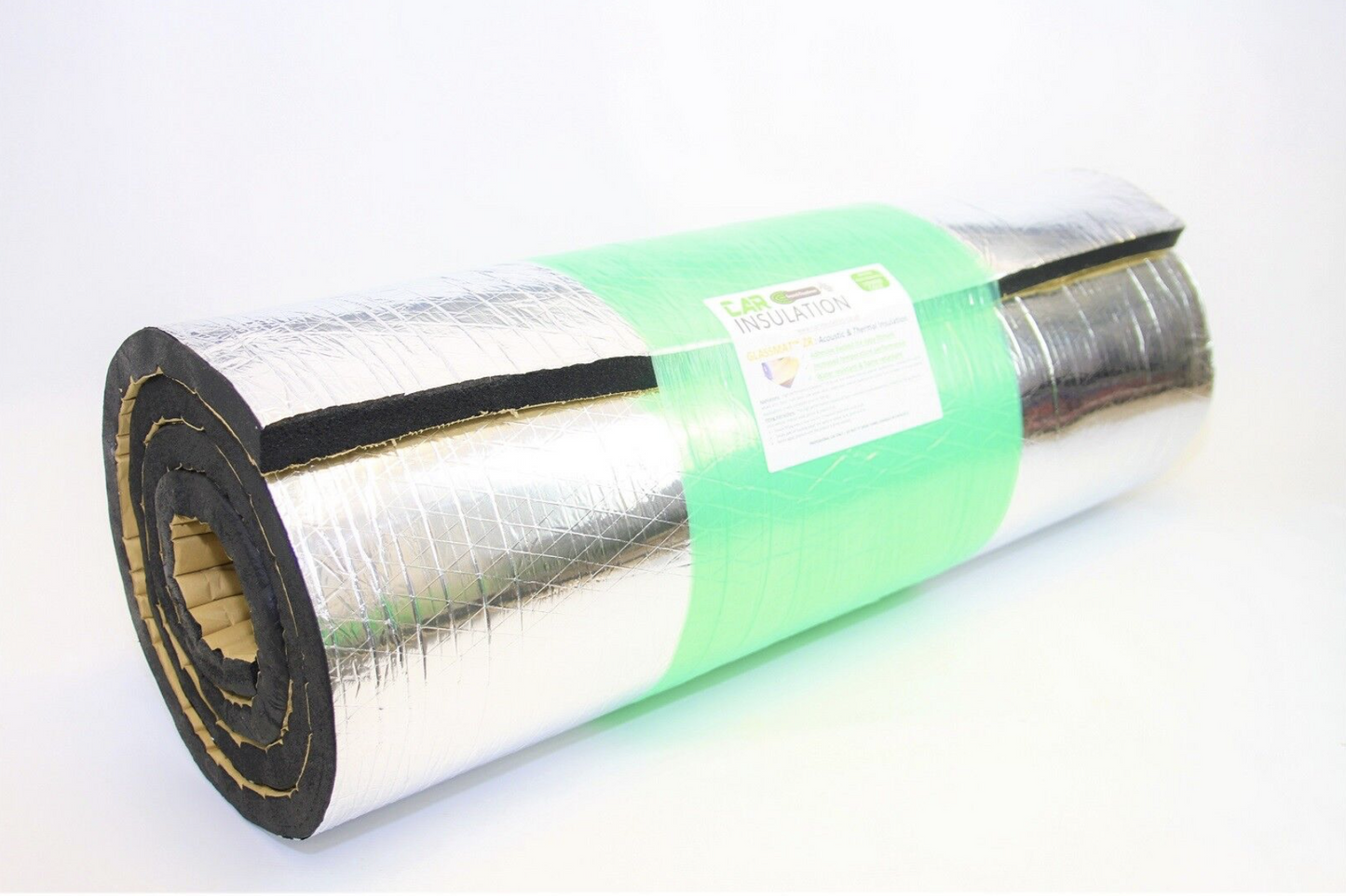

30mm Van & Boat Insulation Heat Reflective Moisture Vapour Barrier, GlassMAT ZR
GlassMAT™ ZR 30mm is a premium closed-cell foam insulation designed for campervans, motorhomes, boats, and vehicles. It provides outstanding temperature regulation, soundproofing, and condensation control, ensuring a quieter and more comfortable environment. With an easy-to-use self-adhesive backing, installation is quick—simply cut, peel, and stick.
Key Features & Benefits
-
25mm- 30mm Thick Closed-Cell Foam – Superior thermal insulation and soundproofing.
-
Self-Adhesive Backing – No additional glue required for quick application.
-
High-Temperature Resistance – Stable from -20°C to +150°C.
-
Mould & Moisture Resistant – Acts as a vapor barrier to prevent condensation buildup.
-
Durable & Long-Lasting – Resists shrinking, degrading, or developing odors over time.
-
Lightweight & Flexible – Adapts easily to flat and contoured surfaces.
-
Water-Resistant & Fire Retardant – Meets FMVSS302 fire safety standards.
-
Built for Harsh Environments – Tough outer layer enhances durability.
Ideal Applications
GlassMAT™ ZR 25mm-30mm is perfect for insulating a variety of vehicles and structures, including:
-
Campervans & Motorhomes – Walls, floors, roofs, and wheel arches.
-
Cars & Vans – Under-seats, body panels, and bulkheads.
-
Marine & Boats – Hull insulation, engine bay, and storage compartments.
-
Industrial & Commercial Vehicles – Firewalls, load floors, and engine compartments (check temperature suitability for extreme heat areas).
Product Specifications
- Size: Available from 1m x 1m
- Nominal Thickness: 25mm-30mm
- Weight: 1300gsm
- Temperature Stability: -20°C to +150°C (to foil)
-
R-Value: ≈ 0.90 (m²·K/W)
- U-Value: ≈ 1.11 (W/m²·K)
- Thermal Conductivity: ≈ 0.035 (W/m·K)
- Sound Deadening: ≈ 22–26 dB
Note on Foam Thickness
Due to the natural structure of closed cell foam, the material can vary slightly in thickness along the length of the roll. This is completely normal for this type of insulation.
Our 25-30 mm foam is manufactured using a heat-expansion process, which creates millions of tiny sealed air cells inside the material. During production, rolling, and compression for transport, some areas may compact slightly more than others. Because of this, you may measure sections as close as 25mm and other areas as much as 30mm.
Installation Methods
Enhance Your Insulation Today
Upgrade your campervan, boat, or vehicle with GlassMAT™ ZR 30mm for superior noise reduction, temperature control, and long-lasting protection. Order now for a more efficient and comfortable ride!
