SOShield 20mm Boat Marine Insulation & Soundproofing

SOShield 20mm Boat Marine Insulation & Soundproofing

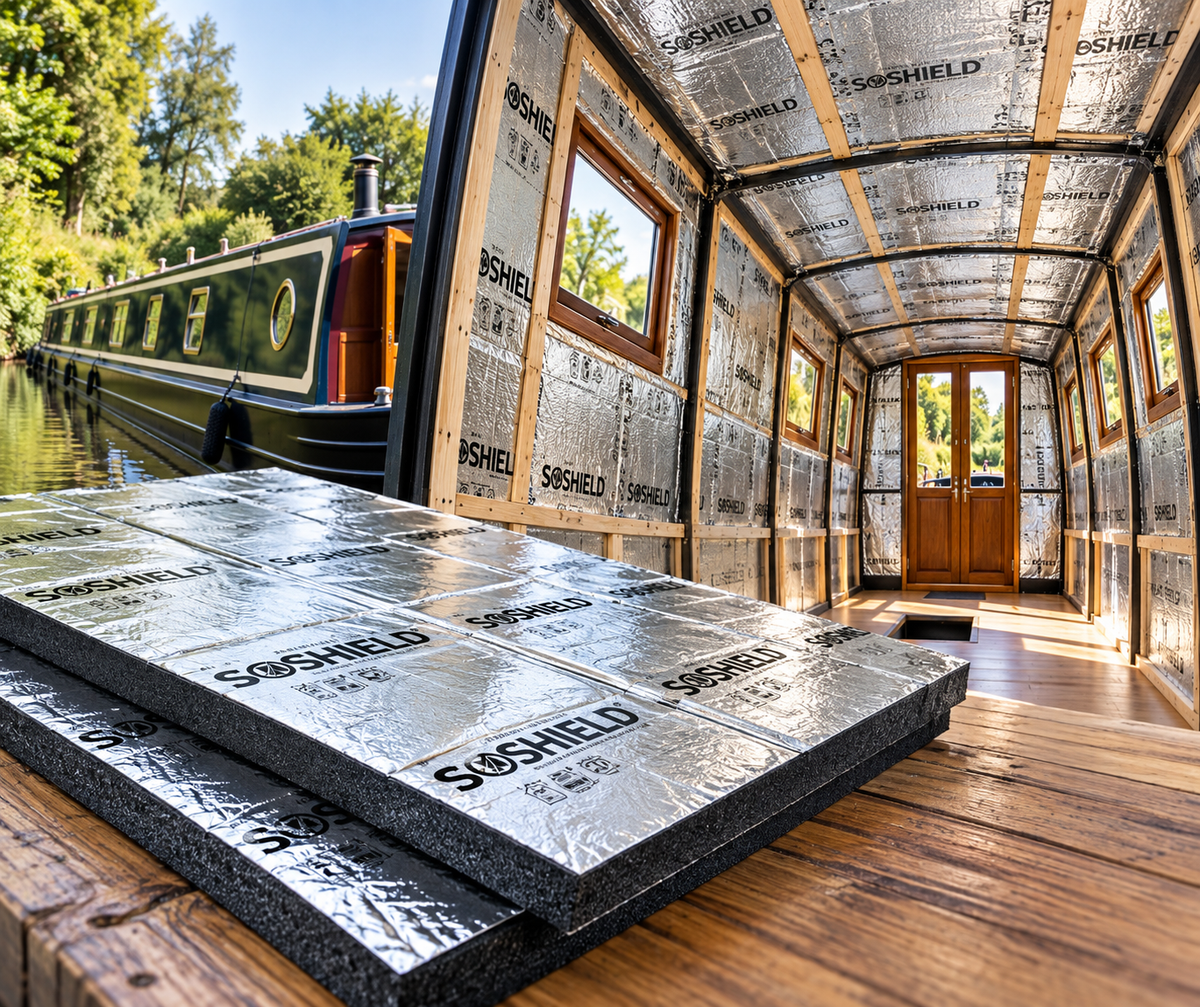

SOShield ALL-IN-ONE Thermal & Acoustic Insulation is a premium 20mm self-adhesive marine insulation liner, ideal for narrowboats, canal boats, barges, houseboats, yachts and motorboats.

Designed to improve comfort on board, SOShield helps reduce heat loss, minimise unwanted noise and provide insulation for boat cabin walls, ceilings, hull sides and bulkheads.

The reinforced aluminium-fibre facing provides a durable protective layer, while the flexible insulation material makes fitting easier around curved and uneven surfaces commonly found inside boats.

SOShield is easy to install with its strong self-adhesive backing. Simply cut to size, peel off the protective paper and apply. No additional glue required.

Key Features & Benefits

• Premium 20mm Marine Insulation – Ideal for narrowboats, canal boats, barges and marine cabins.

• Thermal Insulation – Helps retain warmth in winter and reduce heat transfer during summer.

• Acoustic Insulation & Soundproofing – Helps reduce unwanted engine, machinery and external noise.

• Self-Adhesive Backing – Easy cut, peel and apply installation.

• Reinforced Aluminium-Fibre Facing – Strong, durable outer insulation layer.

• Water-Resistant Material – Suitable for appropriately protected marine interior applications.

• Flexible & Lightweight – Easy to fit around curved boat walls, ceilings and bulkheads.

• Vapour-Resistant Facing – Helps manage moisture movement when joints and edges are correctly sealed.

• Flame Retardant – Manufacturer-stated FMVSS 302 classification.

• Versatile Insulation – Also suitable for campervans, motorhomes and work vans.

Installation Instructions

How to Install SOShield Insulation in a Boat

How to Install SOShield Insulation in a Van

Product Dimensions & Specifications

• Available Sizes: 1m × 1m, 1m × 2m, 1m × 3m

• Coverage: 1m², 2m² or 3m² (10.8, 21.5 or 32.3 sq ft)

• Quantity: 1 Roll (selected size)

• Nominal Thickness: 20mm

• Weight: 1500gsm

• Temperature Resistance: -40°C to +150°C (manufacturer-stated)

• R-Value: Approx. 0.50–0.60 m²·K/W

• Thermal Conductivity: Approx. 0.033–0.040 W/m·K

• Backing: Self-Adhesive with Protective Paper

Applications

Narrowboats & Canal Boats: Cabin walls, ceilings, hull sides, interior lining and bulkheads.

Barges & Houseboats: Living areas, sleeping cabins, partitions and suitable interior panels.

Yachts & Motorboats: Cabin insulation, internal bulkheads and suitable marine lining applications.

Campervans & Motorhomes: Roofs, walls, doors, floors and interior panels.

Important Installation Information

Ensure all surfaces are clean, dry and free from corrosion before applying. For steel narrowboats, suitable ventilation, moisture control and correctly sealed joints are important to help reduce condensation.

If installing near engines, exhaust systems or other high-temperature components, confirm the temperature suitability of the insulation and adhesive before fitting.

SOShield 20mm – Premium Thermal & Acoustic Insulation for Narrowboats, Canal Boats, Barges and Marine Applications.
